IPS has considerable experience working in a 3D / BIM (Building Information Modeling) design and construction environment. We utilize the latest BIM software and technology to design, create fabrication deliverables, and assist in our field installation. These models can be created from scratch internally or we will upgrade an engineer’s conceptual model up to LOD 400.

A large part of our process is incorporating our 3D laser scanner to verify the accuracy of the design model, existing conditions, and to ensure we install per the model. The individual scans taken on site are registered and tied together to create a complete one-to-one scale point cloud. From this point cloud, the customer and our team have the ability to take measurements, view existing site conditions, check interferences, 3D model new proposed work around these interferences, and much more.  Our scanner measures 500k points per second within a 1/16″ accuracy up to 400 feet from the scanner. We perform 3D scanning for internal use as well as a standalone service to be handed over directly to the customer or engineer.

IPS also utilizes our robotic total station to assist in field layout. Points are loaded into it from PDF, CAD, or CSV files.  This total station is controlled through a tablet and provides more efficient and accurate workflow to layout underground piping, equipment, anchor bolts, hangers, penetrations, and much more.

Benefits of utilizing BIM on your project

our scanner’s accuracy is to 1/16th of an inch, which allows for very accurate dimensions in our models thus limiting human error.

much of the fabrication is completed in our shop ahead of time, in a safe, controlled environment. This reduces manpower on-site thus reducing chances for incidents to occur.

prefabricating work allows your facility to continue operations until the tie-ins are ready to occur. Less time spend on site usually means less downtime and lower costs to the client.

before construction even begins, coordination occurs between IPS, the design firm, other contractors, and you – the client! Everyone is on the same page, equipped with the correct specifications, and have the most exact measurements.

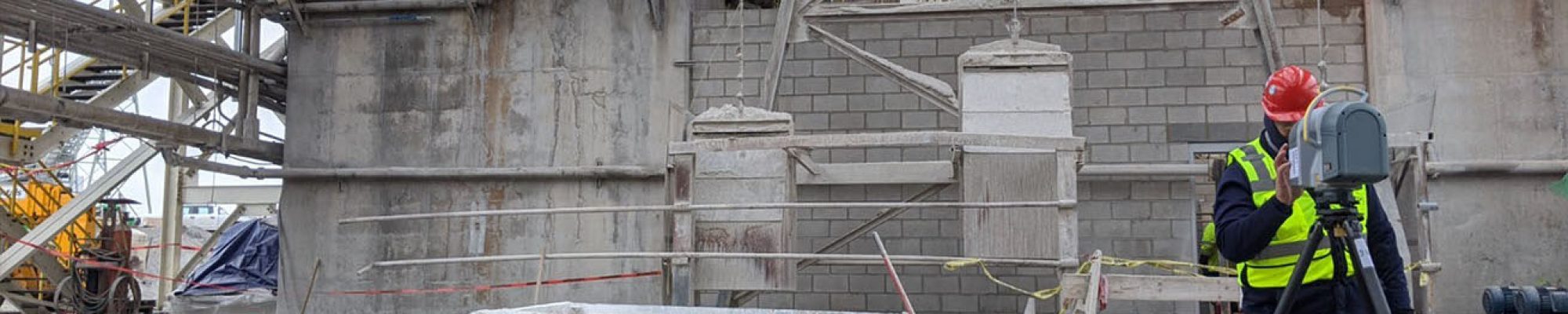

The Trimble TX6 scanner uses a 360 degree rotation to laser scan an area by collecting millions of data points. A point cloud is then created which generates the 3D scan. What does this help with? Checking interferences and accurate dimensions for our fabrication shop to prefabricate all types of piping.

BIM Model

Process Piping Installation

3D model vs after piping installation
